Bellfabs Boilers Official Dealer in India
Bellfabs Boilers Official Dealer in India
Bellfabs Boilers Official Dealer in India, Supply & Export

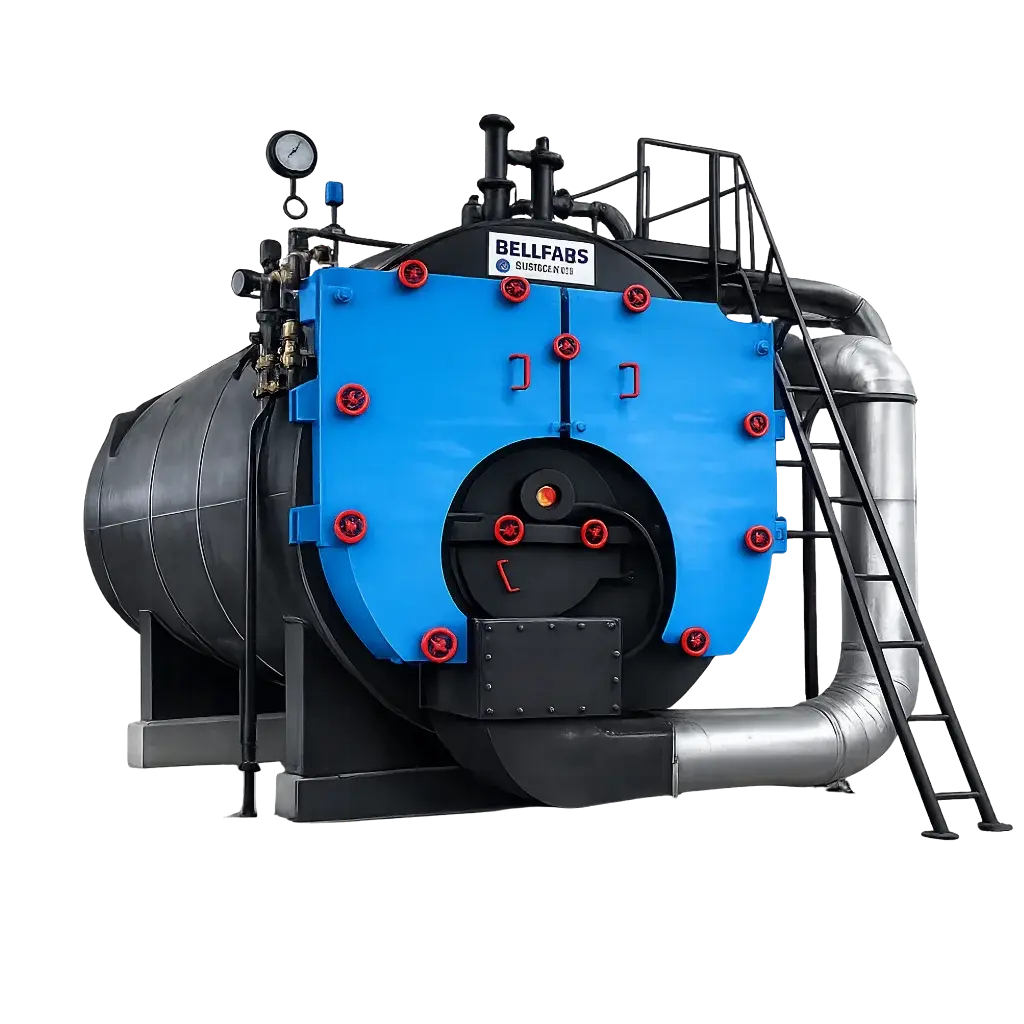

Bellfabs Packaged Steam Boilers
Three-pass solid fuel steam boilers from 0.5 to 8 TPH.
A packaged steam boiler is a factory-built unit, so installation is quick and the steam supply is reliable. Bellfabs builds its solid fuel packaged boilers in a three-pass, fully wet-back design, made to Indian Boiler Regulations (IBR), with steam capacity from 0.5 TPH to 8 TPH (500 to 8000 kg/hr) at working pressure up to 24 kg/cm². They burn economical solid fuels such as wood, biomass briquettes and agro waste, and come in centre, eccentric and twin furnace layouts, with husk, wood chips and briquettes, coal and pellet fired versions also listed. As the official Bellfabs Boilers dealer, Dhyami supplies packaged boilers across India and for export. Need a fixed-model IBR boiler of 500 to 5000 kg/hr? See our Hitze Boilers range, or ask our consultancy team to match the boiler to your fuel and steam load.
✅ Type: Solid Fuel Fired Packaged Steam Boiler
✅ Design: Three-Pass, Fully Wet-Back
✅ Steam Capacity: 0.5 TPH to 8 TPH
✅ Working Pressure: Up to 24 kg/cm²
✅ Fuel: Wood / Biomass Briquettes / Agro Waste
✅ Furnace: Centre / Eccentric / Twin Furnace
✅ Fuel Feeding: Manual
✅ Standard: As per Indian Boiler Regulations (IBR)
✅ Supply: Across India and Export
Request a Quote

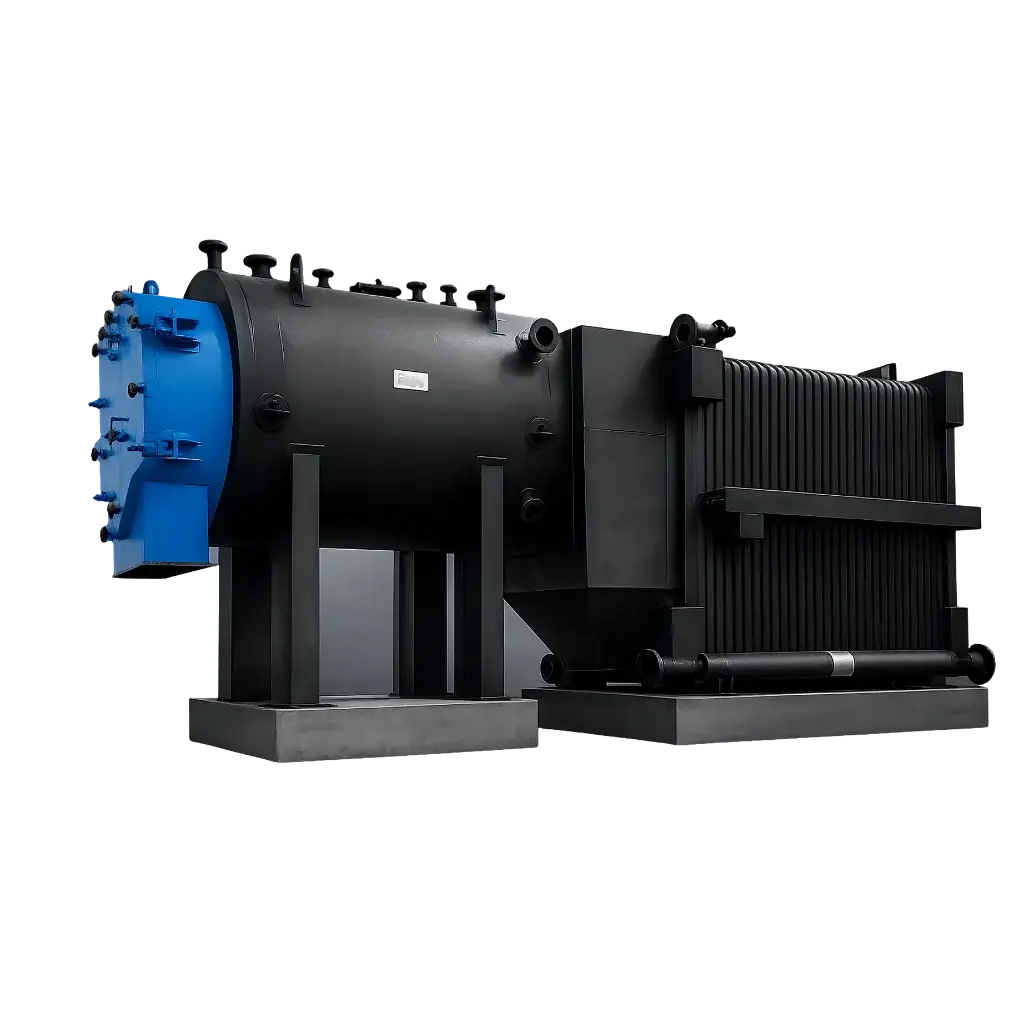

Bellfabs Shell With Water Wall Boiler
A water wall membrane furnace boiler for 1 to 25 TPH.
A shell with water wall boiler joins a conventional shell boiler to a furnace built from water-cooled membrane panels, so the furnace absorbs radiant heat directly and needs less refractory. The Bellfabs Shell With Water Wall (Shell WWW) boiler is a horizontal, multi-pass, solid fuel fired steam boiler made to Indian Boiler Regulations (IBR). For the firewood-fired model, Bellfabs lists steam capacity from 1 TPH to 25 TPH (1000 to 25,000 kg/hr) at working pressure up to 32 kg/cm², with manual furnace feeding. Husk fired, wood chips and briquettes fired, and fluidized bed combustion (FBC) versions are also listed. As the official Bellfabs Boilers dealer, Dhyami supplies this boiler across India and for export. We also supply the pumps a boiler house needs, and cover the plant with full-plant AMC after commissioning.
✅ Type: Shell With Water Wall Membrane Panel Steam Boiler
✅ Configuration: Horizontal, Multi-Pass
✅ Steam Capacity: 1 TPH to 25 TPH
✅ Working Pressure: Up to 32 kg/cm²
✅ Furnace: Water Wall Membrane Panel Furnace
✅ Fuel (Firewood Model): Fire Wood / Wood Logs / Wood Waste
✅ Fuel Feeding: Manual Furnace Feeding
✅ Standard: As per Indian Boiler Regulations (IBR)
✅ Supply: Across India and Export
Request a Quote

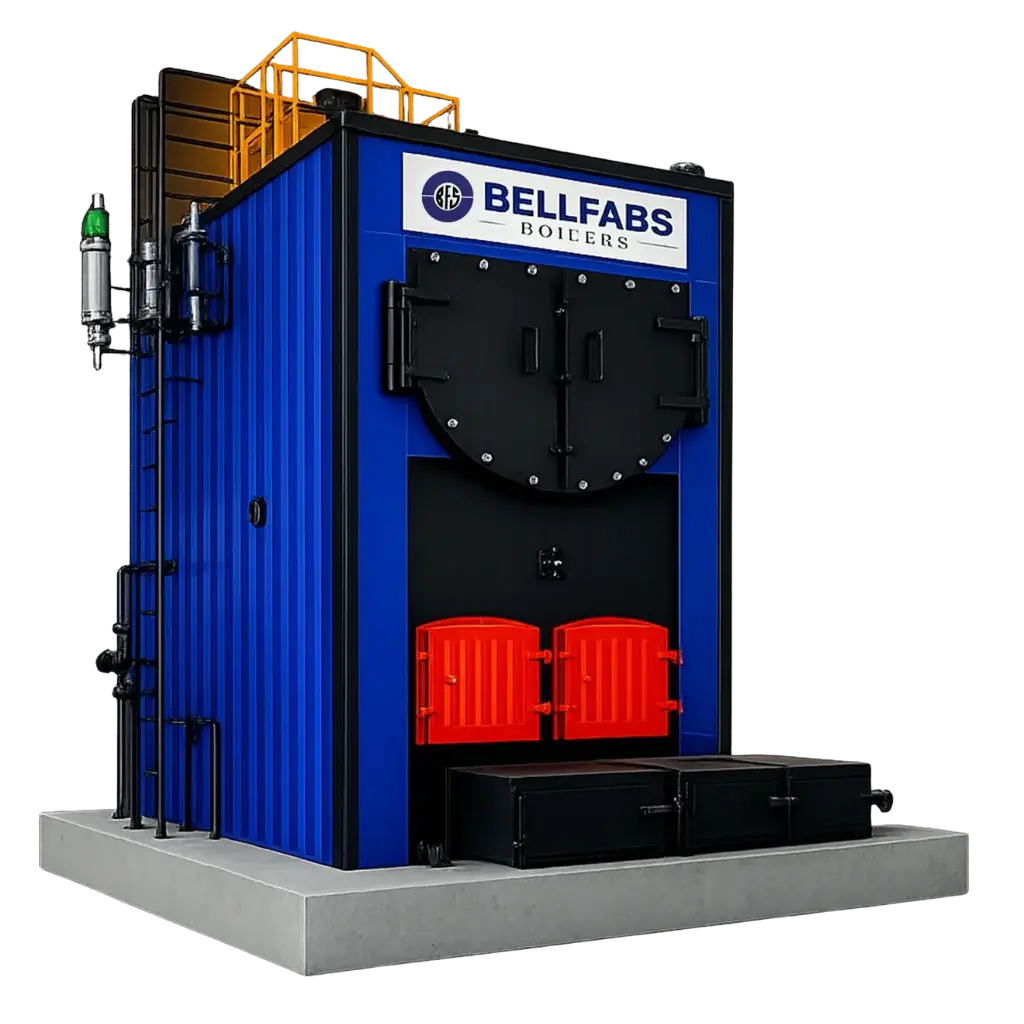

Bellfabs Thermbloc Type Steam Boilers
A compact hybrid steam boiler for 1 to 10 TPH.
A hybrid steam boiler joins a shell boiler to a water wall membrane panel furnace, and a compact design puts the whole system on one frame. The Bellfabs Thermbloc is a horizontal, multi-pass, solid fuel fired boiler with an integrated air pre-heater, air ducting, flue gas ducting, ID fan and FD fan mounted on a single structural frame, which Bellfabs says simplifies installation and saves space. It is made to Indian Boiler Regulations (IBR), with steam capacity from 1 TPH to 10 TPH (1000 to 10,000 kg/hr) at working pressure up to 32 kg/cm². You can choose manual feeding or a fully automatic fuel feeding system, depending on the fuel and your plant. As the official Bellfabs Boilers dealer, Dhyami supplies the Thermbloc across India and for export. We also supply motors and drives and automation and control products used around a boiler house.
✅ Type: Hybrid Steam Boiler (Shell and Water Wall Membrane Panel)
✅ Configuration: Horizontal, Multi-Pass, Solid Fuel Fired
✅ Steam Capacity: 1 TPH to 10 TPH
✅ Working Pressure: Up to 32 kg/cm²
✅ Manual Feeding Fuels: Fire Wood, Coal, Agro Waste, Biomass Briquettes
✅ Automatic Feeding Fuels: Wood Chips, Coal, Saw Dust, Biomass Briquettes
✅ Integrated: Air Pre-Heater, Ducting, ID Fan and FD Fan on One Frame
✅ Standard: As per Indian Boiler Regulations (IBR)
✅ Supply: Across India and Export
Request a Quote

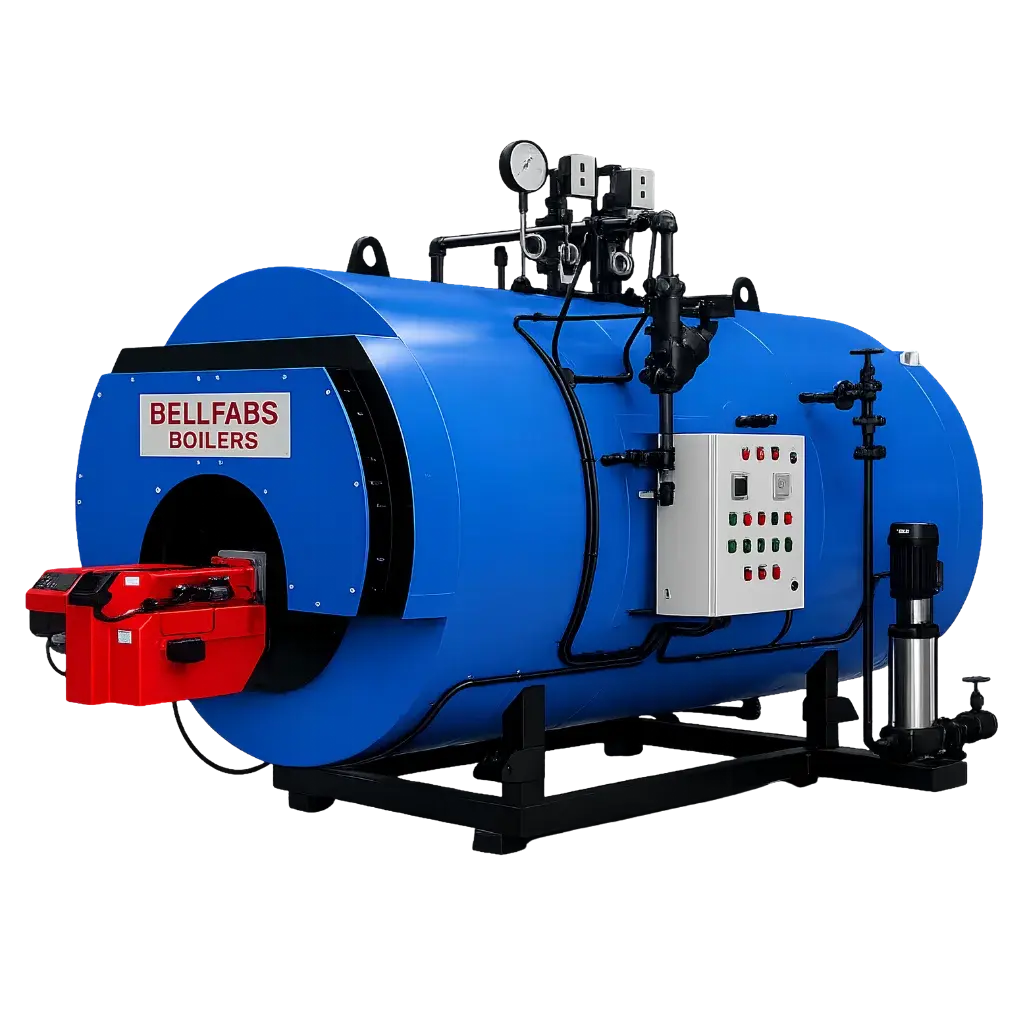

Bellfabs Burner Fired Steam Boilers
Automatic oil and gas fired boilers from 500 kg/hr to 25 TPH.
A burner fired boiler uses an oil or gas burner instead of a grate, so firing is automatic and steam responds quickly when demand changes. The Bellfabs burner fired steam boiler is a horizontal, shell type, three-pass, fully wet-back packaged boiler made to Indian Boiler Regulations (IBR). It fires furnace oil, diesel (LDO or HSD), natural gas or LPG through a monoblock or dual-block burner, with fully automatic combustion and control. Steam capacity runs from 500 kg/hr to 25 TPH (25,000 kg/hr) at working pressure up to 32 kg/cm². As the official Bellfabs Boilers dealer, Dhyami supplies this boiler across India and for export. We also supply the valves and piping that go with the steam and fuel lines, so more of your boiler house comes from one supplier.
✅ Type: Shell Type Burner Fired Steam Boiler
✅ Configuration: Horizontal, Three-Pass, Fully Wet-Back
✅ Fuels: Furnace Oil, Diesel / LDO / HSD, Natural Gas, LPG
✅ Burner: Monoblock or Dual-Block
✅ Steam Capacity: 500 kg/hr to 25 TPH
✅ Working Pressure: Up to 32 kg/cm²
✅ Automation: Fully Automatic Combustion and Control
✅ Standard: As per Indian Boiler Regulations (IBR)
✅ Supply: Across India and Export
Request a Quote

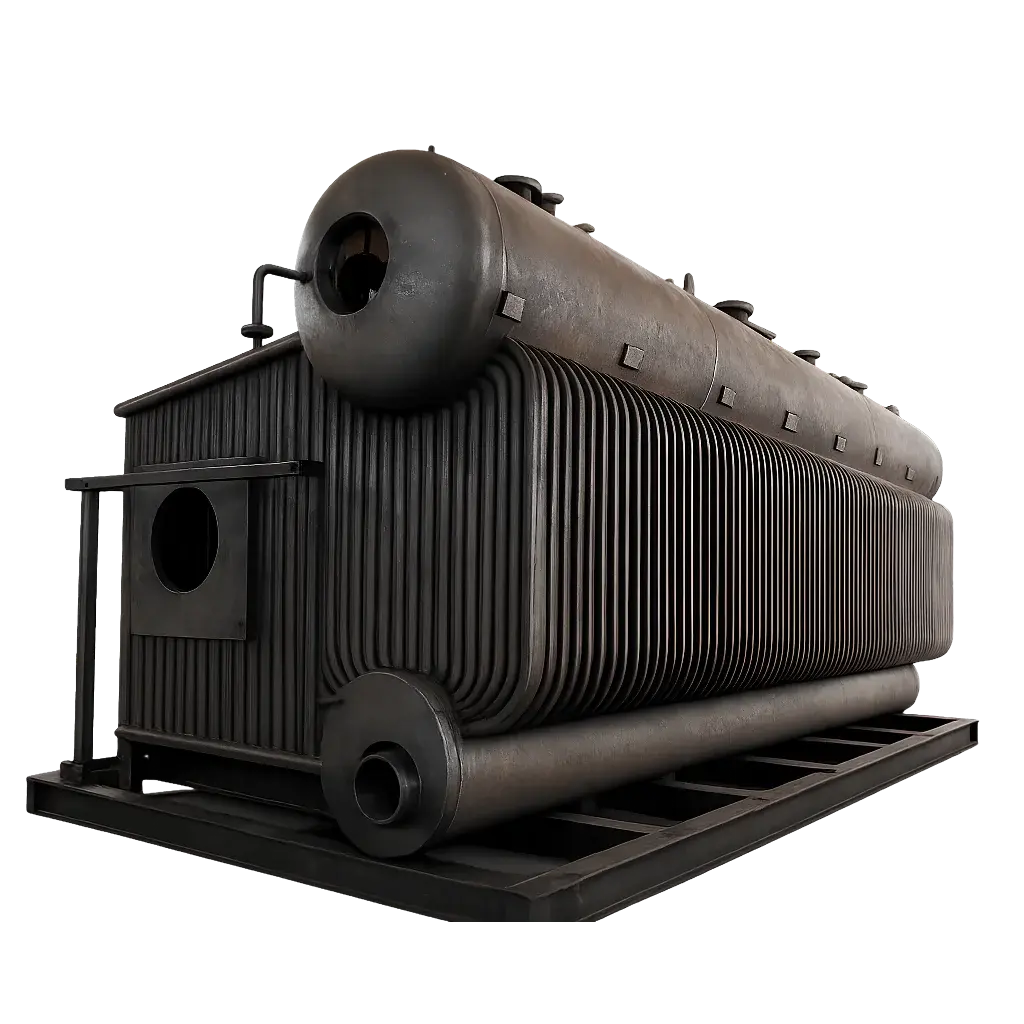

Bellfabs Bi-drum Water Tube Steam Boilers
High-capacity water tube boilers from 5 to 100 TPH.
A bi-drum water tube boiler has an upper steam drum and a lower mud drum joined by water tubes, so water circulates fast, steam is raised quickly and the boiler handles high pressure and large loads. The Bellfabs bi-drum boiler uses a water wall membrane panel furnace and is made to Indian Boiler Regulations (IBR), with steam capacity from 5 TPH to 100 TPH (5000 to 1,00,000 kg/hr) at working pressure up to 105 kg/cm². It can be fitted with fluidized bed combustion (FBC), travelling grate, spreader stoker or burner firing, and burns fuels from coal, biomass and rice husk to bagasse, wood chips, briquettes, agro waste, furnace oil, natural gas and LPG, depending on the combustion system. An economizer and air preheater recover heat from the flue gas. As the official Bellfabs Boilers dealer, Dhyami supplies this boiler across India and for export. For steam loads below 5 TPH, see the packaged and shell boilers above. We also supply pressure gauges and safety and maintenance products for the boiler house.
✅ Type: Bi-drum Water Tube Steam Boiler (Steam Drum and Mud Drum)
✅ Steam Capacity: 5 TPH to 100 TPH
✅ Working Pressure: Up to 105 kg/cm²
✅ Furnace: Water Wall Membrane Panel Furnace
✅ Fuel Options: Coal, Biomass, Rice Husk, Bagasse, Wood Chips, Briquettes, Agro Waste, Furnace Oil, Natural Gas, LPG
✅ Combustion: FBC / Travelling Grate / Spreader Stoker / Burner Fired
✅ Fuel Feeding: Manual / Semi-Automatic / Fully Automatic
✅ Standard: As per Indian Boiler Regulations (IBR)
✅ Supply: Across India and Export
Request a Quote
Bellfabs Thermic Fluid Heaters
Coil type heaters from 50,000 to 20,00,000 kcal/hr.
A thermic fluid heater warms heat transfer oil in a closed loop and pumps it to your process, so the plant reaches high temperatures at low pressure without a steam system. The Bellfabs thermic fluid heater uses a coil type design with a pump-driven forced circulation loop, in vertical or horizontal form, and gathers both radiant and convective heat. On the single zone model, Bellfabs lists heating capacity from 50,000 kcal/hr to 20,00,000 kcal/hr, operating temperature up to 280°C or 300°C, and an atmospheric or low pressure system. It can fire solid fuel (wood, coal, biomass, briquettes), liquid fuel (furnace oil, diesel) or gas (natural gas, LPG), with manual, semi-automatic or fully automatic firing. Single zone, double zone, auto feed and skid mounted versions are listed. As the official Bellfabs Boilers dealer, Dhyami supplies these heaters across India and for export. New to thermic fluid? Read our thermic fluid guide. For a fixed 2,00,000 kcal/hr model, see the Hitze TFH-20, or ask our consultancy team to size a heater for your process.
✅ Type: Coil Type Thermic Fluid Heater
✅ Design: Vertical or Horizontal
✅ Heating Capacity: 50,000 to 20,00,000 kcal/hr (Single Zone)
✅ Operating Temperature: Up to 280°C / 300°C
✅ Pressure: Atmospheric / Low Pressure System
✅ Fuels: Solid, Liquid and Gaseous
✅ Firing: Manual / Semi-Automatic / Fully Automatic
✅ Versions: Single Zone, Double Zone, Auto Feed, Skid Mounted
✅ Supply: Across India and Export
Request a Quote
Bellfabs Boilers Range at a Glance
Bellfabs packaged, shell, hybrid, burner fired and water tube boilers, plus thermic fluid heaters, supplied by Dhyami across India and for export.
⏲️ Max Steam Capacity Bi-drum water tube boiler, top of the range. Steam boilers run from 0.5 to 100 TPH.
100
TPH
📈 Capacity by Product
Packaged Steam Boilers0.5 - 8 TPH
Thermbloc Type1 - 10 TPH
Shell With Water Wall1 - 25 TPH
Burner Fired0.5 - 25 TPH
Bi-drum Water Tube5 - 100 TPH
Thermic Fluid Heaters0.5 - 20 lakh kcal/hr
📊 The Range in Numbers
6
Product Families
1984
Bellfabs Established
105
Max kg/cm² (Bi-drum)
5
IBR Steam Boiler Families
🏭 Built for Industry
FuelsBiomass, Coal, Oil, Gas
Fuel FeedingManual to Fully Automatic
QualityISO 9001:2015 (Bellfabs)
SupplyAcross India and Export
Understanding Bellfabs Boilers
Everything you need to know about Bellfabs steam boilers, water wall furnaces, thermic fluid heaters, fuel options and choosing the right boiler.
What Are Bellfabs Boilers?
Bellfabs is a boiler and pressure vessel manufacturer based at Ranipet in Tamil Nadu, established in 1984, and it states ISO 9001:2015 certification and IBR-approved manufacturing. Its range covers six product families: packaged steam boilers, shell with water wall boilers, Thermbloc hybrid boilers, burner fired boilers, bi-drum water tube boilers and thermic fluid heaters. Together they cover steam from 0.5 TPH to 100 TPH, and Dhyami supplies the range across India and for export.
Shell Boiler or Water Tube Boiler?
In a shell boiler, hot gases pass through tubes surrounded by water inside a large shell. In a water tube boiler, water runs inside the tubes and the hot gases surround them, which suits higher pressure and larger loads. Bellfabs' packaged, shell with water wall, Thermbloc and burner fired boilers are shell designs, while its bi-drum boiler is a water tube design with a steam drum and a mud drum.
What is a Water Wall Membrane Furnace?
A water wall membrane furnace has its walls built from water-cooled panels, so the furnace absorbs radiant heat directly into the water instead of losing it into brickwork. Bellfabs says this reduces refractory needs and helps furnace life. It is used in the Shell With Water Wall, Thermbloc and bi-drum boilers, all of which burn solid fuels.
Bellfabs Boiler Range at a Glance
The six families differ by capacity, pressure and fuel. Pick the row that matches your steam load and the fuel you can buy locally.
| Product | Capacity | Max Pressure | Fuels | Fuel Feeding |
|---|---|---|---|---|
| Packaged Steam Boilers | 0.5 - 8 TPH | 24 kg/cm² | Wood, biomass briquettes, agro waste | Manual |
| Shell With Water Wall | 1 - 25 TPH | 32 kg/cm² | Firewood, wood logs, wood waste (firewood model) | Manual |
| Thermbloc Type | 1 - 10 TPH | 32 kg/cm² | Firewood, coal, agro waste, briquettes (manual). Wood chips, coal, saw dust, briquettes (automatic) | Manual or fully automatic |
| Burner Fired | 500 kg/hr - 25 TPH | 32 kg/cm² | Furnace oil, diesel / LDO / HSD, natural gas, LPG | Fully automatic |
| Bi-drum Water Tube | 5 - 100 TPH | 105 kg/cm² | Coal, biomass, rice husk, bagasse, wood chips, briquettes, agro waste, oil, gas | Manual, semi or fully automatic |
| Thermic Fluid Heaters | 50,000 - 20,00,000 kcal/hr | Atmospheric / low pressure, up to 280 or 300°C | Solid, liquid and gas | Manual, semi or fully automatic |
What Does TPH Mean?
TPH means tonnes of steam per hour, so 1 TPH equals 1000 kg/hr. A 0.5 TPH boiler makes 500 kg of steam an hour, and a 100 TPH boiler makes 1,00,000 kg an hour. Always size a boiler against the total peak steam demand of everything it feeds.
What is IBR Certification?
IBR stands for Indian Boiler Regulations, the safety rules that govern boilers in India. Bellfabs states that its steam boiler families are made to IBR. Its thermic fluid heater page lists "industrial standard design" instead, so Dhyami confirms the standard for your exact model in the quotation. Our full-plant AMC helps keep inspection records in order after installation.
What is a Thermic Fluid Heater?
A thermic fluid heater warms oil in a closed loop and pumps it to the process, so a plant reaches high temperatures at low pressure with no steam system. Bellfabs builds coil type heaters in vertical or horizontal form, with single zone, double zone, auto feed and skid mounted versions. To learn how the fluid works, read our thermic fluid guide.
Steam Boiler or Thermic Fluid Heater?
Choose a steam boiler when your process needs steam itself, such as for pressing, cooking or direct heating. Choose a thermic fluid heater when you need higher temperatures at low pressure, or want to avoid a steam system. Not sure which suits your plant? Our consultancy team can compare both against your load.
How to Choose the Right Bellfabs Boiler
Selecting the correct boiler depends on a few key factors. Use these points as a quick guide:
- Fuel: wood, briquettes or agro waste point to packaged, shell with water wall or Thermbloc boilers, while furnace oil, diesel, gas or LPG points to a burner fired boiler.
- Steam demand: add up the peak TPH of all your users, then choose a capacity with some margin above it.
- Pressure: standard boilers go up to 24 or 32 kg/cm², and the bi-drum water tube boiler goes up to 105 kg/cm².
- Plant size: very large or high pressure plants of 5 TPH and above suit the bi-drum water tube boiler.
- Feeding: choose automatic feeding where you want less manual work, and confirm which fuels it supports.
- Fixed small models: for ready IBR fire tube models of 500 to 5000 kg/hr, see our Hitze Boilers range.
Supply Across India and for Export
To get a quotation, send Dhyami your steam or heat load, preferred fuel, operating pressure, plant location and whether you need IBR certification. We confirm the model with Bellfabs and send a quotation, and models, availability and delivery time are confirmed at that stage. Export enquiries are welcome, so share the destination country along with your requirement.
Trusted Bellfabs Boilers Official Dealer in India
Dhyami is the official dealer for Bellfabs Boilers, supplying packaged, shell with water wall, Thermbloc, burner fired and bi-drum water tube boilers and thermic fluid heaters across India and for export. As a supplier serving many industries, we help plant engineers and buyers match the right Bellfabs boiler to the right fuel and process, with consultancy before purchase and full-plant AMC after commissioning.
6
Product Families
100
TPH Max Capacity
105
kg/cm² Max Pressure
1984
Bellfabs Established
Bellfabs makes six product families: packaged steam boilers, shell with water wall boilers, Thermbloc hybrid boilers, burner fired boilers, bi-drum water tube boilers and thermic fluid heaters. Together they cover steam from 0.5 TPH to 100 TPH. Dhyami supplies the range across India and for export.
Bellfabs steam boilers range from 500 kg/hr (0.5 TPH) up to 100 TPH. Packaged boilers run 0.5 to 8 TPH, Thermbloc 1 to 10 TPH, shell with water wall 1 to 25 TPH, burner fired 0.5 to 25 TPH, and bi-drum water tube 5 to 100 TPH. TPH means tonnes of steam per hour, so 1 TPH equals 1000 kg/hr.
Bellfabs lists working pressure up to 24 kg/cm² for solid fuel packaged boilers, up to 32 kg/cm² for shell with water wall, Thermbloc and burner fired boilers, and up to 105 kg/cm² for bi-drum water tube boilers. Thermic fluid heaters work at atmospheric or low pressure. Ask Dhyami to confirm the pressure for your exact model.
Bellfabs states that its packaged, shell with water wall, Thermbloc, burner fired and bi-drum boilers are made to Indian Boiler Regulations (IBR). For its thermic fluid heaters, Bellfabs lists “industrial standard design” instead of IBR. Dhyami confirms the standard in your quotation.
Bellfabs boilers burn solid, liquid and gas fuels depending on the model. Solid fuel boilers use wood, biomass briquettes, agro waste, coal, wood chips and sawdust. Burner fired boilers use furnace oil, diesel (LDO or HSD), natural gas and LPG. The bi-drum boiler lists nine fuels, including rice husk and bagasse, depending on its combustion system.
In a shell boiler, hot gases pass through tubes surrounded by water inside a large shell. In a water tube boiler, water runs inside the tubes and the hot gases surround them, which suits higher pressure and larger loads. Bellfabs’ bi-drum boiler is a water tube design, and its other steam boilers are shell designs.
A water wall membrane furnace has walls built from water-cooled panels, so the furnace absorbs radiant heat directly into the water. Bellfabs says this reduces refractory needs and helps furnace life. It is used in the shell with water wall, Thermbloc and bi-drum boilers.
A Thermbloc is Bellfabs’ compact hybrid boiler that combines a shell boiler with a water wall membrane furnace, rated 1 to 10 TPH. It is a horizontal, multi-pass, solid fuel boiler with an air pre-heater, ducting, ID fan and FD fan mounted on one frame. It comes with manual or fully automatic fuel feeding.
The burner fired steam boiler suits oil or gas firing, rated 500 kg/hr to 25 TPH at up to 32 kg/cm². It is a horizontal, three-pass, fully wet-back boiler with a monoblock or dual-block burner and fully automatic control. It fires furnace oil, diesel, natural gas or LPG.
For biomass fuels such as wood, briquettes, agro waste and rice husk, look at the packaged (0.5 to 8 TPH), shell with water wall (1 to 25 TPH) and Thermbloc (1 to 10 TPH) boilers. For plants of 5 TPH and above, the bi-drum water tube boiler also burns biomass. Tell Dhyami your fuel and we match the model.
The bi-drum water tube boiler suits large plants, rated 5 to 100 TPH at up to 105 kg/cm². It has a steam drum and a mud drum, a water wall membrane furnace, an economizer and an air preheater. For mid-size loads, the shell with water wall boiler goes up to 25 TPH.
A thermic fluid heater warms heat transfer oil in a closed loop and pumps it to your process, so a plant reaches high temperatures at low pressure with no steam system. Bellfabs builds coil type heaters from 50,000 to 20,00,000 kcal/hr, with operating temperature up to 280 or 300°C. Read our thermic fluid guide for how the fluid works.
Choose a steam boiler when your process needs steam itself, such as for pressing, cooking or direct heating. Choose a thermic fluid heater when you need higher temperatures at low pressure or want to avoid a steam system. Our consultancy team can compare both against your load.
Start with your fuel, then your peak steam demand in TPH, then your working pressure. Add margin above your peak demand rather than choosing the nearest size. Tell Dhyami your fuel, load, pressure, plant location and whether you need IBR, and we confirm the model with Bellfabs before quoting.
Yes, Dhyami is the official dealer for Bellfabs Boilers and supplies the range across India and for export, based on your enquiry. Share your plant location or destination country and we confirm the route and the model with Bellfabs.
Send Dhyami your steam or heat load, preferred fuel, operating pressure, plant location and whether you need IBR certification. We confirm the model with Bellfabs and send a written quotation. Use the Request a Quote button on any product above to start.
No, prices are not listed online because each boiler is quoted against your capacity, fuel, pressure and site requirements. Dhyami sends a written quotation after confirming details with Bellfabs. Availability and delivery time are confirmed at that stage.
Yes, Dhyami offers technical consultancy before purchase and full-plant AMC after commissioning. Bellfabs also lists its own AMC, operation and maintenance, boiler revamping and fuel feeding automation services. Warranty terms are confirmed in your quotation.
Bellfabs boilers are made by Bellfabs at its facility in the BHEL Ancillary Estate, Ranipet, in Vellore District, Tamil Nadu. Bellfabs states it was established in 1984 and holds ISO 9001:2015 certification and IBR-approved manufacturing. Dhyami is its official dealer for supply across India and for export.
